700.000 د.ع

1000KG Gear System Residential Electric Gate Motor Sliding Gate Opener

The AC powered sliding gate opener is designed to operate sliding gates up to 1000kg in weight. It is an all in one motor and control panel, making it simple to install and extremely compact and neat.

Features :

  • Built in control panel making installation compact, neat simple
  • Limit switch (spring limit & magnet limit optional) allowing the motor to switch off once the cycle is finished Built in manual release in case of emergency or power off
  • The motor is contructed of all metal gears making it durable and long lasting
  • Weatherproof
  • Manual Release
  • All Metal Gears
  • Metal Gear Drive

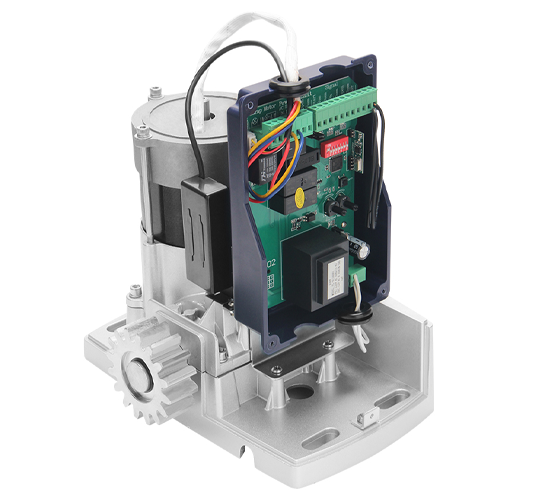

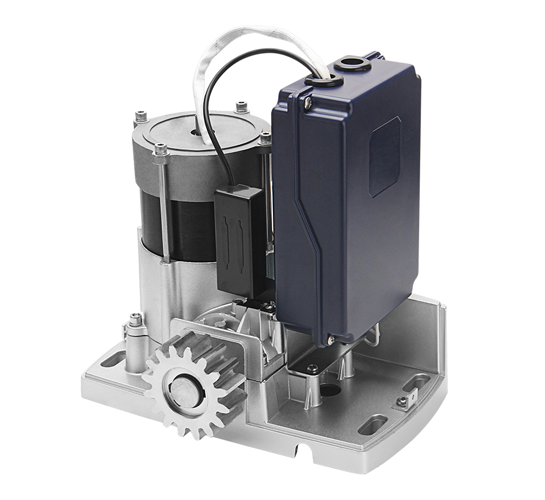

  • All in one internal Motor and Weather Proof control panel

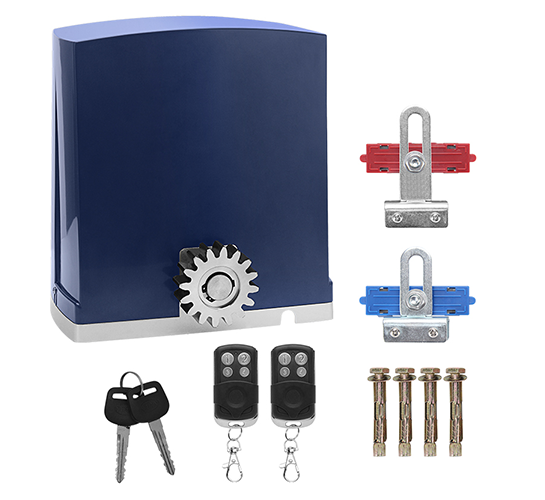

Standard Kit :

  • 1*Sliding gate motor
  • 1*built in control panel
  • 3*remote controls
  • 1*handle hardware accessories
  • 4*Gear rack : 100CM
  • 1*Flash lamp
  • 2*Photocell
Category:

Description

EGB-02 Control Board Function

  1. Single button control circularly /three buttons control can be chose

  2. Alarm lamp interface

  3. Automatic closing time adjustable

  4. Pedestrian mode

  5. Condominium mode

  6. Limit switch NC/NO optional

  7. Photocell NC/NO optional

  8. Switch power on/off button at board

  9. Open and close motor senstivity setting seperately

  10. Terminal for open only , close only for external control device

  11. Adjustable resistance sensitivity

  12. Gate will auto stop and re-open when an obstacle is encountered

Specs :

Model No PYM -K2208
Rated Voltage 220V±10%/110V±10%
Rated Motor Power 130W
Electric Motor 220VAC/110VAC 130W
Max Loading Weight 1000KG
Limit Switch Type Magnetic/Spring
Output Speed 50r/min±10%
Max. Pull Force 1000N
Gear Modulus M=4
Open/Close Speed 12m/min
Noise ≤55dB
Working Temperature -20°C ~ +55°C
Duty Cycle 80%
