20.000 د.ع

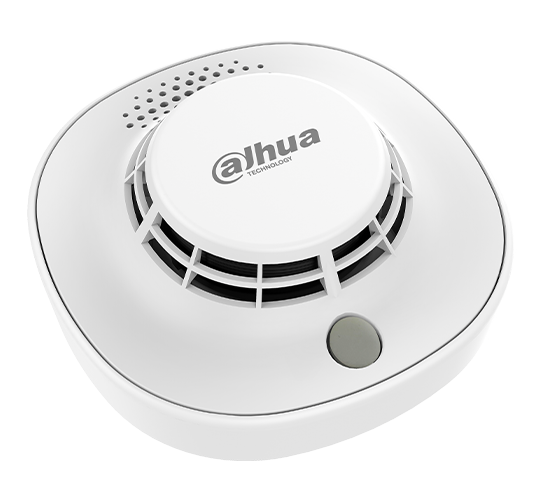

Conventional Smoke Detector

DHI-HY-C133 Conventional Smoke Detector is a mated product of the Conventional Fire Alarm Control Panel. Integrated with four-wire and polarity-free technology, this detector analyzes ambient smoke concentration through a dual photoelectric smoke sensing chamber.

  1.  Four-wire, polarity-free realizes convenient wiring.
  2.  BLC algorithm automatically adjusts alarm threshold based on the smoke in the chamber, extending cleaning cycle and providing easier maintenance.
  3.  Non-loosening screws on base terminal for easy installation.
  4.  Contacts material is highly acid-resistant and rust-resistant.

datasheet_Conventional Smoke Detector DHI-HY-C133

Category:

Description

Functions:

Built-in buzzer
With a built-in buzzer, the detector sends out audible alarm when a fire occurs.
Dual photoelectric smoke sensing chamber
The smart algorithm of automatic compensation against dust concentration helps adjust alarm threshold, prolong cleaning cycle of chamber, and offering a convenient maintenance.
Non-addressable
Without encoding, easy debugging and operating.
